XCS-800PC-A Crash Lock-Bottom Box Carton Folding Gluing Machine

Home >> Products >> XCS Series >> XCS-800 Folding Machine >> XCS-800PC-A Crash Lock-Bottom Box Carton Folding Gluing Machine

XCS-800PC-A Intelligent Crash Lock Bottom Box Corrugated Carton Automatic Folder Gluer

  • Description

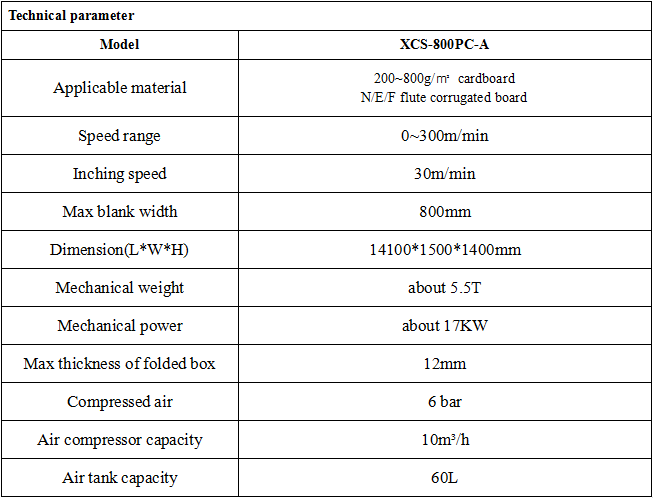

  • Folding Specification
  • Partial Mechanism Function Description

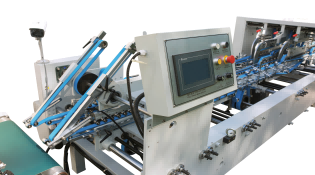

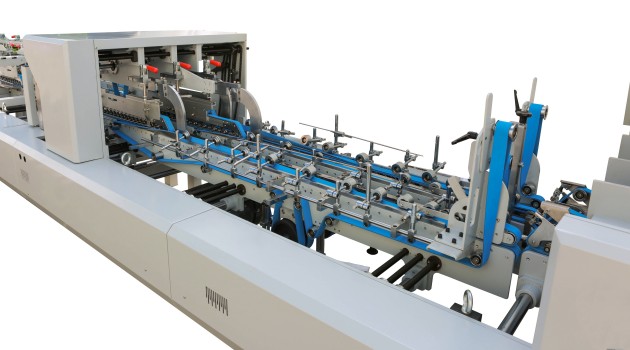

XCS-800PC-A High-speed Automatic Folder Gluer

XCS-800PC-A High-speed Automatic Folder Gluer

XCS-800PC-A High-speed Automatic Folder Gluer

  • Feeder XCS-650/800/980PC-A

    Feeder XCS-650/800/980PC-A

    1.Independently motorized friction feeder with variable speed. 2.Adjustable vibration motor. 3.Side feed gates fully adjustable to the width of the blank. 4.Adjustable front feeder knive.

  • Aligner XCS-650/800/980PC-A

    Aligner XCS-650/800/980PC-A

    Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.

  • Pre-folding unit XCS-650/800/980PC-A

    Pre-folding unit XCS-650/800/980PC-A

    1.Left upper left 180°pre-folded. 2.The third indentation line 135°pre-folding. 3.1st and 3 rd crease openers.

  • Lock Bottom of Hook XCS-650/800/980PC-A

    Lock Bottom of Hook XCS-650/800/980PC-A

    1.The whole set of frontal lock device ensures the smooth and accurate operation of the bottom lock. 2.B-type lock box accessories.

  • Final Folding Unit XCS-650/800/980PC-A

    Final Folding Unit XCS-650/800/980PC-A

    1.Smoothly and accurately finish the second fold line, the fourth fold line 180 °combined. 2.Outer folding belts adjustable up to 180°with variable speed. 3.Two upper and two lower carriers with 25mm lower and 30mm outer belts.Width wise adjustable heavy duty compression rollers.

  • Output Unit XCS-650/800/980PC-A

    Output Unit XCS-650/800/980PC-A

    1.Upper and lower drive mechanism for lengthwise adjustment. 2.Equipped with automatic belt tension-adjusting system. 3.Continuous and automatic box collection mechanism that ensures a neat transfer to the press section, guaranteeing a well aligned flow.

  • Conveyor XCS-650/800/980PC-A

    Conveyor XCS-650/800/980PC-A

    1.The speed of the delivery pressure part can be adjusted automatically or manually according to the speed of the host machine. 2.Depending on the length of the box, the output pressure part can move back and forth.

  • Operation System XCS-650/800/980PC-A

    Operation System XCS-650/800/980PC-A

    Photo-electricity counting, quantity counting is available, pneumatic kicker for mark is used. Human-computer interface, which can be controlled scientifically, and easy operation.

  • 4/6 Corner(Optional) XCS-650/800/980PC-A

    4/6 Corner(Optional) XCS-650/800/980PC-A

    1.The two sets of servo axis ensure that the anti-hook folding movement is accurate, and the setting can be easily completed by the touch screen. 2.Intelligent servo motor drive control electronic anti-hook system.
