YL-1100PC-B High-speed Automatic Folder Gluer

Home >> Products >> YL Series >> YL-1100 Folding Machine >> YL-1100PC-B High-speed Automatic Folder Gluer
YL-1100PC-B Corrugated Carton Folder Gluer

YL-1100PC-B Corrugated Carton Folder Gluer

Inquire Now
  • Description

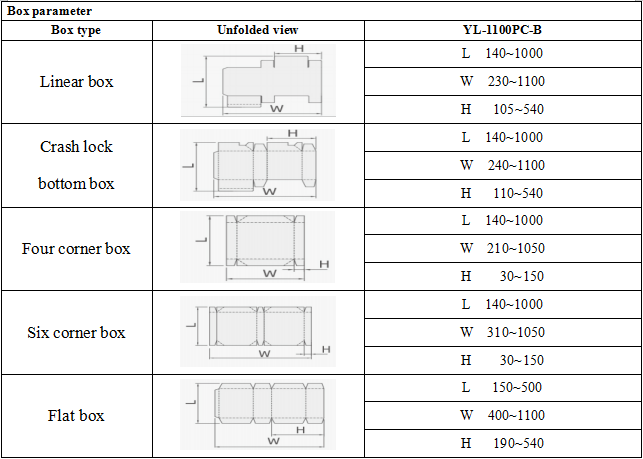

  • Folding Specification
  • Partial Mechanism Function Description

YL-1100PC-B Corrugated Carton Folder Gluer

YL-1100PC-B Corrugated Carton Folder Gluer


YL-1100PC-B Corrugated Carton Folder Gluer

  • Feeder YL-1100PC-B

    Feeder YL-1100PC-B

    1.Independent servo motor drive. 2.Adjustable vibration motor. 3.Two sets of adjustable feeder knives. 4.Adopt high performance suction belts to relize the stability of paper feeding.

  • Aligner YL-1100PC-B

    Aligner YL-1100PC-B

    1.Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.   2.Simple.fast and flexible operation.

  • Pre-folding YL-1100PC-B

    Pre-folding YL-1100PC-B

    1.Left upper left 180°pre-folded. 2.The third indentation line 135°pre-folding  3.With the pre-folding open device for 1st and 3 rd creasing line.

  • Lock Bottom YL-1100PC-B

    Lock Bottom YL-1100PC-B

    1.The whole set of frontal lock device ensures the smooth and accurate operation of the bottom lock. 2.B-type lock box accessories.

  • Final Folding Unit YL-1100PC-B

    Final Folding Unit YL-1100PC-B

    1.Smoothly and accurately finish the second fold line, the fourth fold line 180 °combined. 2.Outer folding belts adjustable up to 180°with variable speed. 3.Two upper and two lower carriers with 40mm lower and 50mm outer belts. Width wise adjustable heavy duty compression rollers.

  • Output Unit YL-1100PC-B

    Output Unit YL-1100PC-B

    1.The telescopic rod of upper and lower brackets can be adjusted independently. 2.Equipped with automatic belt tension adjustment system. 3.Continuous and automatic box collection mechanism that ensures a neat transfer to the press section, guaranteeing a well aligned flow.

  • Transmission Yl-1100PC-B

    Transmission Yl-1100PC-B

    1.The speed of the delivery pressure part can be adjusted automatically or manually according to the speed of the host machine. 2.Depending on the length of the box, the output pressure part can move back and forth.

  • 4/6 Corner(Optional) YL-1100PC-B

    4/6 Corner(Optional) YL-1100PC-B

    The two sets of servo axis ensure that the anti-hook folding movement is accurate, and the setting can be easily completed by the touch screen. Intelligent servo motor drive control electronic anti-hook system.

Click to expand more
Tags:Carton Making Machine, Folder Gluer, Corrugated Box Folding Gluing Machine, Box Machine, Folding Machine, Automatic Functional Folder Gluer, Corrugated Carton, Carton Box Packing Machine, Packing Carton Machine, Box Folding Gluing Machinery
