YL-1450PC-A Automatic Folder Gluer

Inquire Now

Description
Folding Specification
Partial Mechanism Function Description

1.Equipped with full color touch screen monitor, main machine, transfer and conveyor can control the speed automatically and synchronization trace parameter setting system.

2. The machine adopt movable and adjustable operating function in each section .Equipped with elaborate tooth lever design. It is simple, convenient and efficient for one man operation.

3. High power stepless speed control frequency conversion and high-efficiency power motor, the highest speed can reach 400 meters/min, power transmission adopts powerful belt transmission, with low noise, high efficiency, easy maintenance and economic efficiency.

4. Each functional components of the machine adopt modular design, which is convenient to assemble, convenient to replace and debug products, convenient for beginners to master technology, and easy to learn.

5. Unique design of the upper and lower glue tank and coordinate with the need of products.

6. Compression and conveyor section equipped with adjustable the pressure design according to the needs of the products. Equipped with a set of special soft belts to ensure uniform pressure and perfect quality.

7. The machine adopt photoelectric counting, which can be used for total or quantitative counting, and equipped with kicker mark recognition device.

Model	YL-1450PC-A
Suitable paper	200-800 g / ㎡ cardboard, E-F-N corrugated board
Box type	Straight line, crash-lock bottom, double sides, optional four/six corner box
Feeding way	Continuous automatic feeding.
Glue type	Solute style
Max. speed	400m/min
Power	36KW, AC220V/380V
Weight	12T
Dimension	19000mm2400mm1600mm（LWH）
Inching speed	40m/min
Compressed air	6 bar
Air compressor capacity	10m/³
Air tank capacity	60L

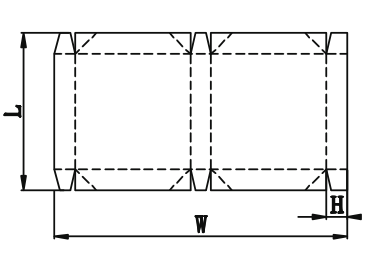

Straight line box	Max	Min
L	1000mm	100mm
W	1450mm	180mm
H	715mm	85mm

Crash lock box	Max	Min
L	1000mm	100mm
W	1400mm	200mm
H	690mm	95mm

Double sides box	Max	Min
L	1000mm	140mm
W	1000mm	220mm
H	50mm	15mm

Four corner	Max	Min
L	1000mm	140mm
W	1400mm	180mm
H	150mm	30mm

Six corner	Max	Min
L	1000mm	140mm
W	1400mm	280mm
H	150mm	30mm

Feeder

>Independently motorized friction feeder with variable speed
>Adjustable vibration motor
>Side feed gates fully adjustable to the width of the blank
>Two adjustable front feed knives
Climbing section(optional)

>One-button electric lifting, easy to understand and operate, greatly improving production efficiency and achieving more stable folding.
Final folding unit

>Smoothly and accurately finish the second fold line, the fourth fold line 180 °combined.
>Outer folding belts adjustable up to 180°with variable speed.
>Two upper and two lower carriers with 25mm lower and 30mm outer belts.
>Width wise adjustable heavy duty compression rollers.(optional)
Output unit

>Upper and lower drive mechanism for lengthwise adjustment
>Equipped with automatic belt tension-adjusting system
>Continuous and automatic box collection mechanism that ensures a neat transfer to the press section, guaranteeing a well aligned flow.
