YL-1450PC-B High-speed Automatic Folder Gluer

Home >> Products >> YL Series >> YL-1450 Folding Machine  >> YL-1450PC-B High-speed Automatic Folder Gluer

YL-1450PC-B Multifunctional Automatic Folder Gluer

  • Description
  • Folding Specification
  • Partial Mechanism Function Description

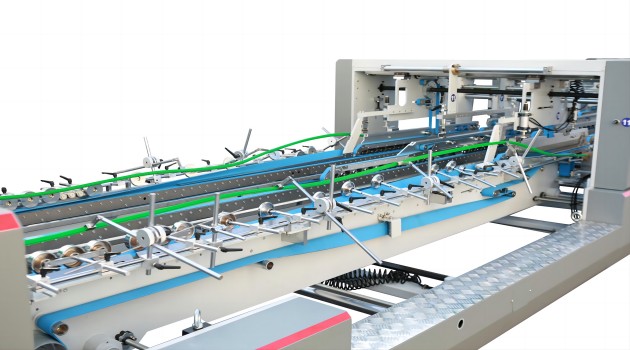

YL-1450PC-B Automatic Folder Gluer

YL-1450PC-B Automatic Folder Gluer

YL-1450PC-B Automatic Folder Gluer


  • Feeder YL-1450/1650PC-B

    Feeder YL-1450/1650PC-B

    1.Independent servo motor drive. 2.Adjustable vibration motor. 3.Three sets of adjustable feeder knives. 4.Adopt high performance suction belts to relize the stability of paper feeding.

  • Aligner YL-1450/1650PC-B

    Aligner YL-1450/1650PC-B

    1.Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.  2.Simple.fast and flexible operation.

  • Pre-folding YL-1450/1650PC-B

    Pre-folding YL-1450/1650PC-B

    1.Left upper left 180°pre-folded. 2.The third indentation line 135°pre-folding 3.With the pre-folding open device for 1st and 3 rd creasing line.

  • Lock Bottom YL-1450/1650PC-B

    Lock Bottom YL-1450/1650PC-B

    1.The whole set of frontal lock device ensures the smooth and accurate operation of the bottom lock. 2.B-type lock box accessories.

  •  Final Folding Unit YL-1450/1650PC-B

     Final Folding Unit YL-1450/1650PC-B

    1.The upper and lower belts main drive to ensure paper delivery smoothly. 2.The middle plate adopts pneumatic lifting to facilitate the production of small box with left and right guide plates.

  • Output Unit YL-1450/1650PC-B

    Output Unit YL-1450/1650PC-B

    1.The telescopic rod of upper and lower brackets can be adjusted independently. 2.Equipped with automatic belt tension adjustment system.

  • Conveyor YL-1450/1650PC-B

    Conveyor YL-1450/1650PC-B

    1.The speed of the delivery pressure part can be adjusted automatically or manually according to the speed of the host machine. 2.Depending on the length of the box, the output pressure part can move back and forth.

  • 4/6 Corner YL-1450/1650PC-B

    4/6 Corner YL-1450/1650PC-B

    The two sets of servo axis ensure that the anti-hook folding movement is accurate, and the setting can be easily completed by the touch screen.Intelligent servo motor drive control electronic anti-hook system.
