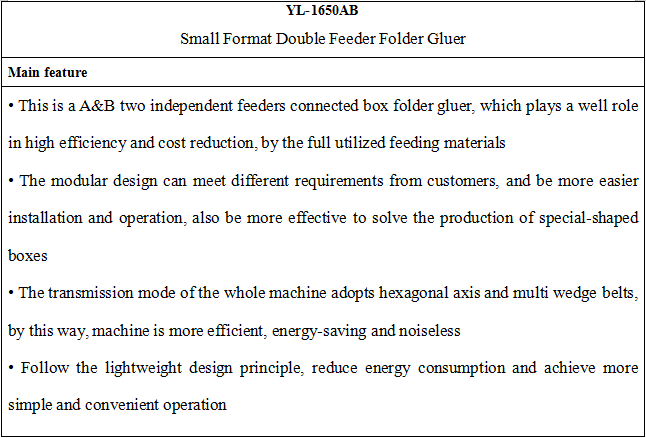

YL-1650AB Small Format Double Feeder Folder Gluer
Home >> Products >> YL Series >> YL-1650 Folding Machine >> YL-1650AB Small Format Double Feeder Folder Gluer
Down Feeder YL-1450/1650AB
Independently motorized friction feeder with variable speed Adjustable vibration motor Two adjustable front feed knives Vacuum feeder belts,ensure stable feeding
Aligner section YL-1450/1650AB
Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.
Joint section YL-1450/1650AB
1.Independent servo motor control 2.Big blank conveyor with big suction feeding belts,to ensure more stable feeding 3.Equipped with 2 sets high power air suction
Upper Feeder YL-1450/1650AB
1.Independent servo motor control 2.With baffle and knife(left and right) 3.With independent adjustable aligner,ensure parallel feeding
Final Folding Unit YL-1450/1650AB
1.Upper and lower main drive belts to ensure paper processing smoothly 2.Middle board with pneumatic lifting function,can let middle board down when make small size box
Output Unit YL-1450/1650AB
1.Upper and lower drive mechanism for lengthwise adjustment 2.Equipped with automatic belt tension-adjusting system 3.Continuous and automatic box collection mechanism that ensures a neat transfer to the press section, guaranteeing a well aligned flow
Conveyor YL-1450/1650AB
1.Equipped with upper and lower independent motors 2.The speed of the delivery pressure part can be adjusted automatically or manually according to the speed of the host machine 3.Depending on the length of the box, the output pressure part can move back and forth,and the whole conveyor can be moved left and right by equipped traverse rail
