YL-800PC-C High-speed Automatic Folder Gluer

Home >> Products >> YL Series >> YL-800 Folding Machine >> YL-800PC-C High-speed Automatic Folder Gluer

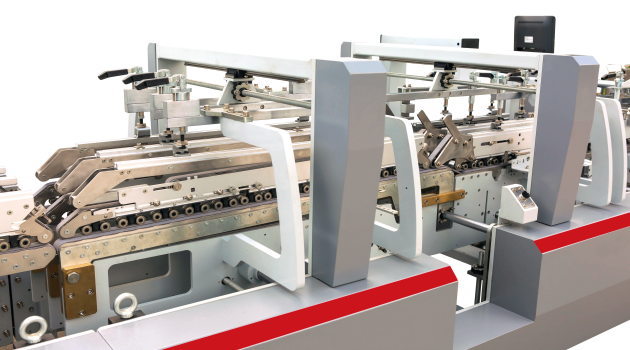

YL-800PC-C High-speed Automatic Folder Gluer with Climbing Section

YL-800PC-C High-speed Automatic Folder Gluer with Climbing Section

Inquire Now

Description
Folding Specification
Partial Mechanism Function Description

YL-800PC-C High-speed Automatic Folder Gluer with Climbing Section

YL-800PC-C High-speed Automatic Folder Gluer with Climbing Section

YL-800PC-C High-speed Automatic Folder Gluer with Climbing Section

Feeder YL-800/980PC-C

1.Independently motorized friction feeder with variable speed. 2.Adjustable vibration motor. 3.Side feed gates fully adjustable to the width of the blank. 4.Two adjustable front feed knives.
Aligner YL-800/980PC-C

Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.
Pre-folding YL-800/980PC-C

1.Left upper left 180°pre-folded. 2.The third indentation line 135°pre-folding. 3.1st and 3 rd crease openers.
Climbing Bottom YL-800/980PC-C

One-botton electric lifiting,easy to operate greatly improve the production the production efficiency,chieved more stable folding process.
Dowm Glue Tank YL-800/980PC-C

1.Both left and right equipped with one pc of down glue tank. 2.Stable at high speed, without glue throwing and leakage.
Final Folding YL-800/980PC-C

1.Smoothly and accurately finish the second fold line, the fourth fold line 180 °combined. 2.Outer folding belts adjustable up to 180°with variable speed. 3.Two upper and two lower carriers with 25mm lower and 30mm outer belts.Width wise adjustable heavy duty compression rollers.
Output Unit YL-800/980PC-C

1.Upper and lower drive mechanism for lengthwise adjustment. 2.Equipped with automatic belt tension-adjusting system. 3.Continuous and automatic box collection mechanism that ensures a neat transfer to the press section, guaranteeing a well aligned flow.
Conveyor YL-800/980PC-C

1.The speed of the delivery pressure part can be adjusted automatically or manually according to the speed of the host machine. 2.Depending on the length of the box, the output pressure part can move back and forth.
4/6 Corner(Optional) YL-800/980PC-C

1.The two sets of servo axis ensure that the anti-hook folding movement is accurate, and the setting can be easily completed by the touch screen. 2.Intelligent servo motor drive control electronic anti-hook system.

Click to expand more

Tags:Folder Gluer Machine, Corrugated Carton, Carton Folder Gluer Machine, Automatic Folder Gluer, Folder Gluer Machine, Folding and Gluing, Automatic Box Making Machine , Corrugate Box Folder Gluer, Carton Making Machine, Cardboard Carton Making Machine
